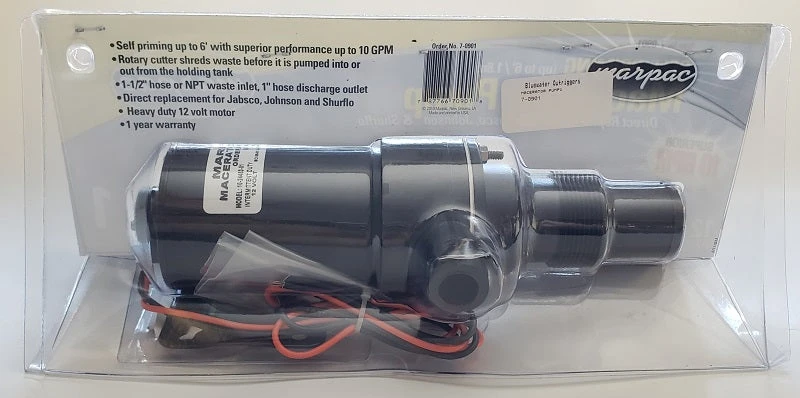

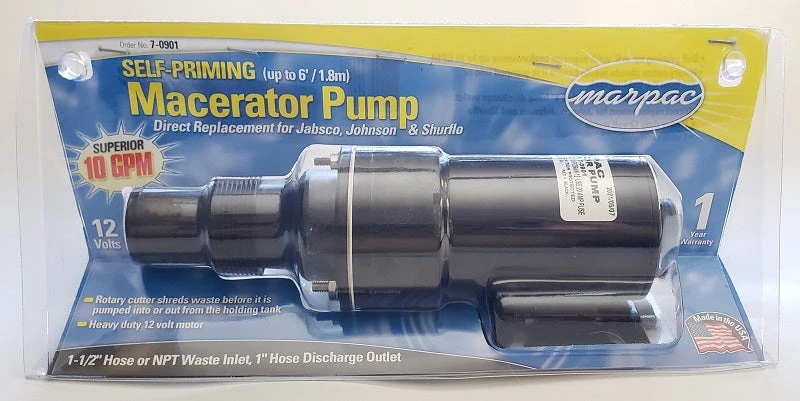

Marpac Self-Priming Macerator Pump 7-0901 Marine

Marpac Self-Priming Macerator Pump 7-0901

The ideal solution for emptying marine holding tanks when not in a discharge restricted area.

It is recommended that holding tanks be flushed with several gallons of water after each pump out. This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage.

The Macerator Pump is the ideal pump for the emptying of fish box and livewell receptacles. Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank. If not installed in this format then it is beneficial to use the macerator pump for evacuation due to its self-priming capabilities and also it’s grinding properties.

Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline. Again the Macerator pump has the characteristics that lend themselves to this application. The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed buy the Macerator Pump, and the self priming capabilities are perfect for fish box installations common to many of today’s sports fishing boats.

Specifications

• Impeller: Nitrile compound
• Macerator: Stainless Steel Cutter reduces particle size to 1/8″ (3mm) maximum, new 4 blade design
• Seal: Lip Type
• Port(s) Inlet – 1-1/2″ (38mm) Hose Barb and 1-1/2″ N. P. T. (Male) Outlet – 1″ (19mm) Hose Barb
• Motor Type Permanent Magnet Type, Fully Enclosed, with Stainless Steel Shaft. Includes Run-Dry Protection Device that shuts-off pump. Powder coated housing with sealed end-bells and bearings
• Complies with USCG Regulation 183. 410 and ISO 8846 MARINE for Ignition Protection
• DC macerator waste pump for emptying marine holding tanks, ideal for use when not in a discharge restricted are, also suitable for fish box and livewell receptacles
• Self priming to 5 feet this pump will empty a typical 30 gallon (115 Liter) holding tank in less than 3 minutes
• Duty cycle of pump is 15 minutes continuous which means a 180 gallon (680 liter) can be emptied in a single operation
• Includes Run-Dry Protection Device that shuts-off pump
• Permanent magnet type motor, fully enclosed with stainless steel shaft
• Direct Replacement for Jabsco, Johnson & Shurflo
• Weight 2. 3 (kg), 5 lbs
